Product Details:
Payment & Shipping Terms:
|
| Inlet/outlet: | 2"M | Flow Rate: | 20 M3/h |
|---|---|---|---|
| Water Pressure: | 0.2—0.6MPa | Brine Line Connector: | 3/4″M |
F95D1 Runxin Automatic Softner Control Valve Water Flow Control Valve For Water Softner
Runxin F95D1 Technical Parameters:
| Water Pressure | 0.2—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Transformer Output | DC24V,1.5A |
| Water Turbidity | ＜5FTU |
| Inlet/Outlet | 2″M |
| Drain | 1.5″M |
| Brine Line Connector | 3/4″M |
| Base | 4″-8UN |
| Riser Pipe | 1.5 ″D-GB |
| Max Flow Rate | 20 m3/h |
| Suitable Tank Size (in) | 28″～40″ |

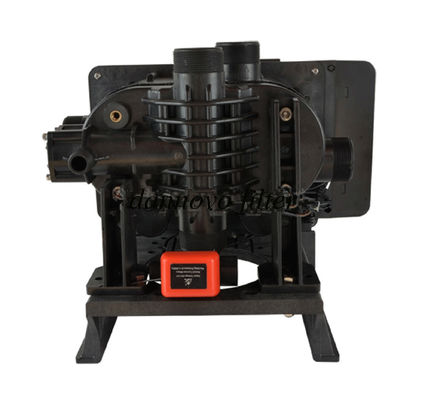

Runxin F95D1 Shows:
Runxin F95D1 Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water pass the valve of single tank type in regeneration
■Brine refill controlled by electronic ball valve
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is inregeneration cycle.
■Having long outage indicator
■It can choose time clock type or meter type by program selection
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Range of Application:
(Down-flow Regeneration) be suitable for the Ion exchange equipment that treat water hardness ≤6.5mmol/L
Boiler softening water system
RO pretreatment softening system, etc
