| Material: | Pp Membrane | Color: | White |
|---|---|---|---|
| Lenth: | 10-40inch | Micron: | 0.1-100um |
10*0.22um Microporous Nylon PP Pleated Filter Cartridge for Water Filter
Microporous Nylon Filter Cartridge introduction:
the pp pleated filter cartridge is made of pp membrane not pp,so it can filter more impurity than pp filter cartrdige because of its high micron accuracy. this pp pleated filter cartridge is usually used into hospital and anyother more quality requirement products.
Microporous Nylon Filter Cartridge parameters:
| Material | Membrane: | pp membrane |
| Core: | PP | |
| Support layer: | PP | |
| sealing method: | Thermal bonding | |
| O ring/Gasket: | PP | |
| Specifications | Pore size(um): | 0.1,0.2,0.45,0.65…..Micron |
| Outer Diameter(OD): | 69mm (can be decided by client) | |
| Length(inch): | 5” 10", 20", 30", 40"(can be decided by client) | |
| Technical data | Max differential pressure: | Forward-70psi (4.8 bar) at 25°C Reverse-40 psi(2.7bar) at 25 °C |
| Recommended change out: | 1.5bar | |
| Max temperature: | 80°C | |
| Sterilization | 20times,30 minutes cycles @121°C |

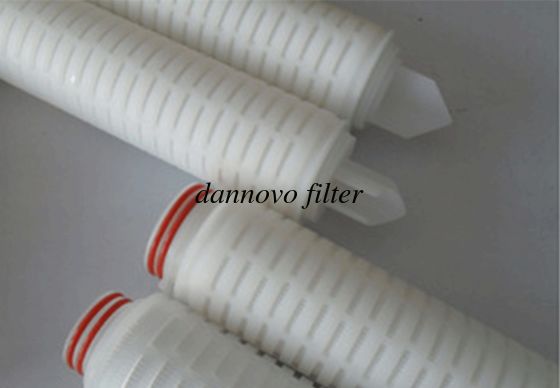

Microporous Nylon Filter Cartridge shows:
222+Triangular tip ends:
222+fans ends :
226+Triangular tip ends:
226+fans ends :
