Product Details:
Payment & Shipping Terms:
|
| Item: | Tatinium Microporous Plate Filter Cartridge | Material: | Titanium |
|---|---|---|---|
| Filter Rating: | 99% | Length: | 10inch 20inch 30inch 40inch |
Microporous Tatinium Filter Cartridge Plate Filter Cartridge for Liquid:
Titanium Microporous Plate filter cartridge specifications:
1.withstand heat,high pressure
2.constructed from sintered titanium power.
3.high corrosion resistance
Titanium Microporous Plate filter cartridge Dimensions/Parameters:
Norminal lengths:
10 inch ,20 inch, 30 inchi
(25.4, 50.8, 76.2 cm)
End configuration:
Double open End
226/Flat Single Open End
222/Flat Single Open End
3/4 inch Male NPT
1 inch Male NPT
Outside diameter
2.75 inch(70mm) or 2.36 inch (60mm)
Max. operating temp:700 F(371 C)
Max. differential pressure:
250 psid(17.4 bar) forward
50 psid(3.5 bar) reverse
| Name | sintere titanium filter cartridge |
| shape | plate/disc/tube |
| Filtration precision | 98% filtration accuracy under:0.1-80um |
| Specification | Thickness:0.6-3mm |
| Application | 1.High pressure filter medium,oilfield oil sands separation |
| Filter rating | 0.2um-80um |
| Feature | 1.function:water filter |
| Work environment | 1.Nitric aci,sulfuric acid,acetic acid,oxalic acid,phosphoric acid,5% hydrochloric acid |

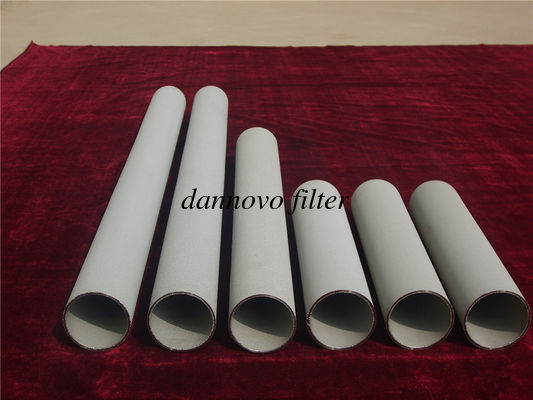

Titanium Microporous Plate filter cartridge shows:
