| Model: | F118 | Color: | Black |
|---|---|---|---|
| Inlet/outlet: | G1 | Drain: | NPT3/4 |
Runxin F118 valve Technical Parameters:
| Water Pressure | 0.15—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Model | F118A,F118AR,F118B,F118BR |
| Inlet/Outlet | G1 |
| Drain | NPT3/4 |
| Brine Line Connector | G3/8 |
| Base | 3*2.5″-8NPSM |
| Riser Pipe | 1.05 ″OD |
| Max Flow Rate | 4 m3/h |
| Suitable Tank Size (in) | 10″～18″ |
Runxin F118valve Characteristics:
Two in service one standby continuously water supplying control valve 18604(F118)
(Two tanks in series which is suited for high hardness water softening)
It can be used to treat the raw water with the hardness of more than 600mg/L
Two tanks supply with softened water in series, the other tank standby.
When service finishes, the first grade in series turns to regenerate, the
second grade turns to the first grade and supplies with softened water
together with the standby tank in series.
Remove one tank to make the system as a traditional one in service one standby system.

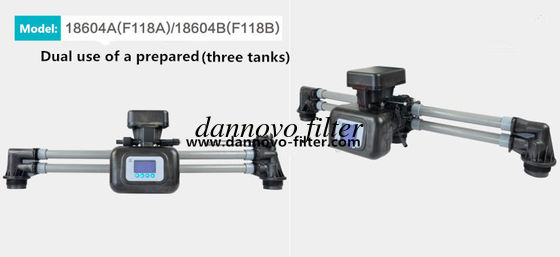

Runxin F118 valve Shows:
