Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Model: | F71B |
|---|---|---|---|
| Flow Rate: | 2m3/h |
Runxin Automatic Filter Control Valve F71B Multi-function Valve In Water Treatment
Runxin Automatic Filter Control Valve Parameters:
| Water Pressure | 0.15—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Transformer Output | DC12V,1.5A |
| Water Turbidity | ＜20FTU |
| Inlet/Outlet | 3/4″F |
| Drain | 3/4″F |
| Base | 2.5″-8NPSM |
| Riser Pipe | 1.05 ″OD |
| Max Flow Rate | 2 m3/h |
| Suitable Tank Size (in) | 6″～10″ |

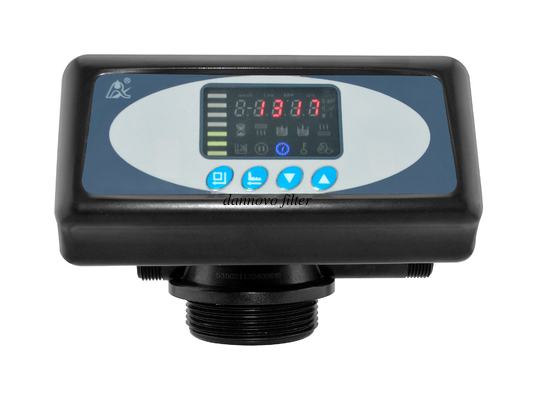

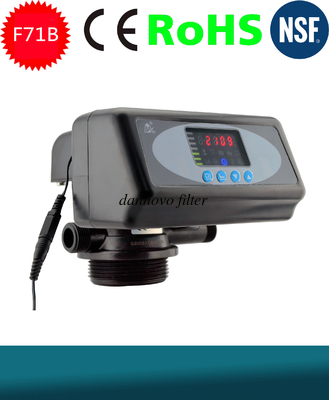

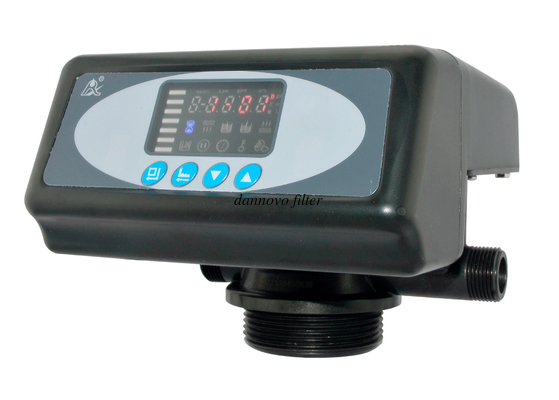

Runxin Automatic Filter Control Valve Shows:
Runxin Automatic Filter Control Valve characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Runxin Automatic Filter Control Valve Range of Applications:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
Runxin Automatic Filter Control Valve packing:
