Product Details:
Payment & Shipping Terms:
|
| Inlet/outlet: | DN80 | Flow Rate: | 50 M3/h |
|---|---|---|---|
| Color: | Black |

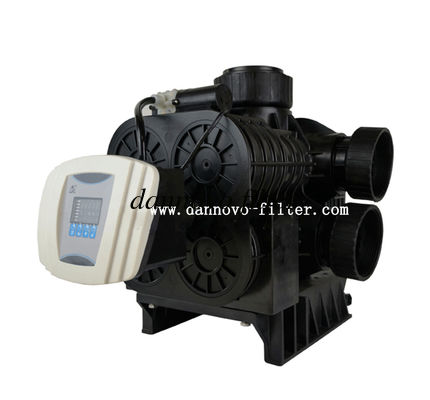

Runxin Automatic Filter Control Valve F96B Big Flow Filter Valve For RO System
F96B Valve Runxin Technical Parameters:
| Water Pressure | 0.2—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Transformer Output | DC24V,4A |
| Water Turbidity | ＜2FTU |
| Inlet/Outlet | DN80 |
| Drain | DN80 |
| Top and Bottom Strainer | DN100 |
| Max Flow Rate | 50 m3/h |
| Suitable Tank Size (in) | 24″～63″ |
F96B Valve Runxin Shows:
F96B Valve Runxin Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■The main valve uses the structure of four tee pistons. The distribution valve is combined with main valve.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■Buttons are locked when no operation within 1 minute
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Range of Application:
Filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
F96B Valve Runxin Fitting and Packing:
