| Item: | Automatic Softner Valve F69A Reflow RUNXIN Softner Valve For Water Softner | Model: | F69A1 |
|---|---|---|---|
| Color: | Black |
Runxin Multi-function Automatic Softner Control Valve F69A For Water Softner
Automatic Softner Valve Technical Parameters:
| Water Pressure | 0.15—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Transformer Output | DC12V,1.5A |
| Water Turbidity | Up-flow regeneration＜2FTU |
| Inlet/Outlet | 3/4″F |
| Drain | 1/2″M |
| Brine Line Connector | 3/8″M |
| Base | 2.5″-8NPSM |
| Riser Pipe | 1.05 ″OD |
| Max Flow Rate | 2 m3/h |
| Suitable Tank Size (in) | 6″～12″ |
Automatic Softner Valve Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water pass the valve of single tank type in regeneration
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in regeneration cycle.
■Having long outage indicator
■It can choose time clock type or meter type by program selection
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Range of Application:
Residential filtration system Ion exchange equipment
Boiler softening water system
RO pretreatment softening system, etc

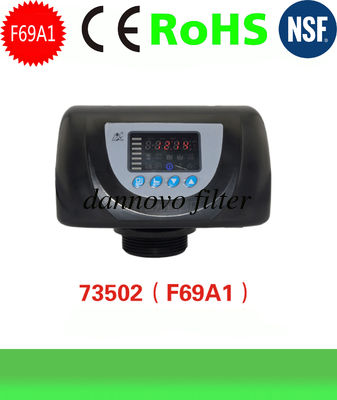

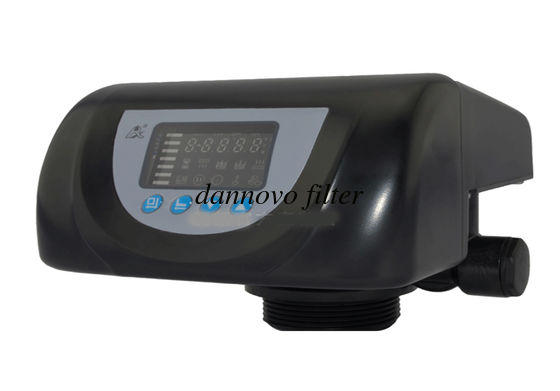

Automatic Softner Valve shows detail:
