| Length: | 20inch=508mm | ID: | 30mm |
|---|---|---|---|
| OD: | 65mm | ||
| Highlight: | liquid filter cartridge,string wound cartridge fitler,pp cotton yarn filter cartridge |
||
20" 5Micron String Wound Water Filter Cartridge PP Yarn Filter
string wound pp yarn filter cartridge Specification:
1.High Dirt Holding Capacity
2.High Water Flow Rater Filter
3.pp yarn filter cartridge
4.10-40inch Filter
string wound pp yarn filter cartridge Parameters:
| Length | 10"/20"/30"/40" |
| inner diameter | 28mm(30mm) |
| outer diameter | 62±1mm |
| micron | 1,5,10,20,50,100um |
| material | polypropylene yarn |
| application field |
electroplating,food factory,chemical factory,power plant an any other widely fileds |
Introduction:
Wire wound filter element is a deep filter element. It used to low viscosity, low quantity impurity level filtering.
It is made of fiber single, in accordance with specific industrial art critically bind on the porous skeleton.
The structure is out sparse inner thick honeycomb. It can wipe off suspended matter, particulate, rust which in the fluid.
It has very excellent filtering features and widely used to tap water, drink, industrial water, water of life, electroplate liquid, chemistry soup, oil, paint etc filtering.
1.Matertals Structure:
The filtrating core is, ade up of pp textile fibers, and circlingbased on specific density,
then filtrating hole coming into being, the fibers circles the frame strucre of multi-hole pp.
2.Filtrare Precise:
0.5–100 μm (nominal precise)
3.Features:
Low cost, deep filtrate, large flux, Wide chemical acceptance, long usage life, can effectively remove the suspending granule, rusts.
4.Working Condition
Working Temperature: <60°C
Working Differential Pressure: ≤0.2mpa ~ ≤0.5mpa (compression resistance)
Flux: 1T-2T/h (under0.2Mpa)
5.Models
Outside diameter: Φ60– Φ65 (it can be customized)
Inside diameter: Φ 28– Φ 30
Length: 5″, 10″, 20″, 30″, 40

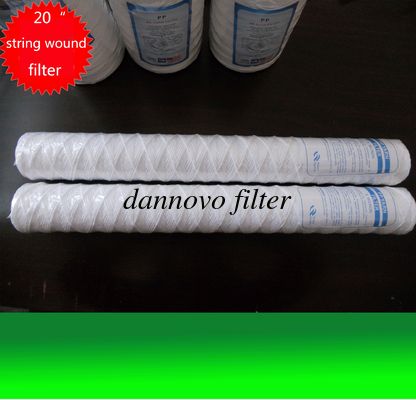

string wound pp yarn filter cartridge shows:
