Color: | Black | Inlet/outlet: | 1"M |
---|---|---|---|
Flow Rate: | 4m3/h |
Runxin Water Treatment Parts 1" In And Out Plastic Bypass Valve F70C
Runxin F70C Bypass Valve Water Treatment Parts Bypass Valve in Water Treatment Parts
Bypass Valve F70C Technical Parameters:
Water Pressure | 0.6MPa |
Water Temperature | 5ºC-50ºC |
Inlet/Outlet | 1″M |
Max Flow Rate | 4 m3/h |
Bypass Valve F70C Characteristics:
Simple structure and reliable sealing
Small volume and easy installation
Can shut off incoming water and make it easy for pipeline maintenance
Bypass Valve F70C Applications:
Be suitable for F63/F68 valve and combines with service, part bypass, close and bypass functions
Main use and scope of application:
Mainly used for control of inlet bypass in water treatment systems.
Suitable for supporting RUNXIN F63, F68, F82, etc.
When the soft water system needs to be repaired, the bypass function of the bypass valve can be used to replenish the water outlet with untreated raw water.
When used in household soft water systems, because the soft water is not suitable for drinking, some of the raw water can be directly discharged from the water outlet without softening by the bypass valve, and mixed with soft water to increase the hardness of the water.
Features:
Simple and reliable structure:
F70A/F70B adopts high flatness, corrosion-resistant end face seals to open and close, reliable sealing, set operation, close, bypass, partial bypass and other functions in one.
Easy to operate:
Can be rotated or pulled directly to achieve bypass, partial bypass, softening operation.
Built-in flow meter:
For the bypass valve of F70A/F70B/F70C, a built-in flow meter can be built, and the control valve is composed of a flow-type control valve with bypass.
Various connection methods:
For the F70A, each has two 90° inlets and outlets, which can be connected according to the needs of the inlet and outlet pipes.
For F70C/F70D, there are two kinds of BSPP and NPT for the inlet and outlet threads.

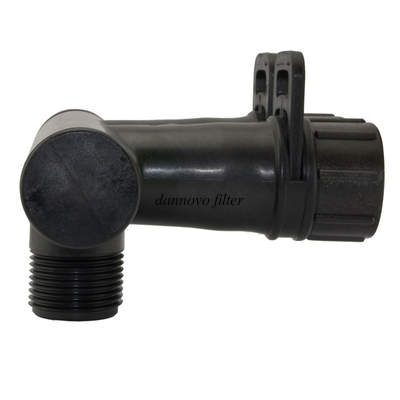

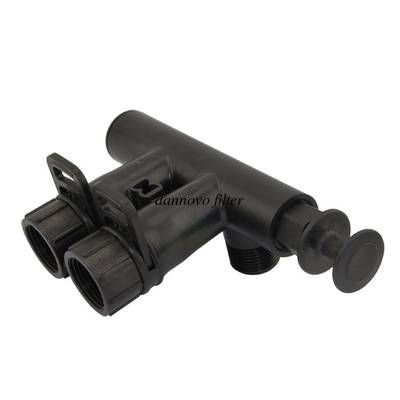

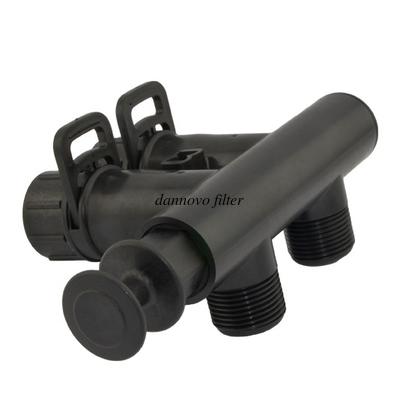

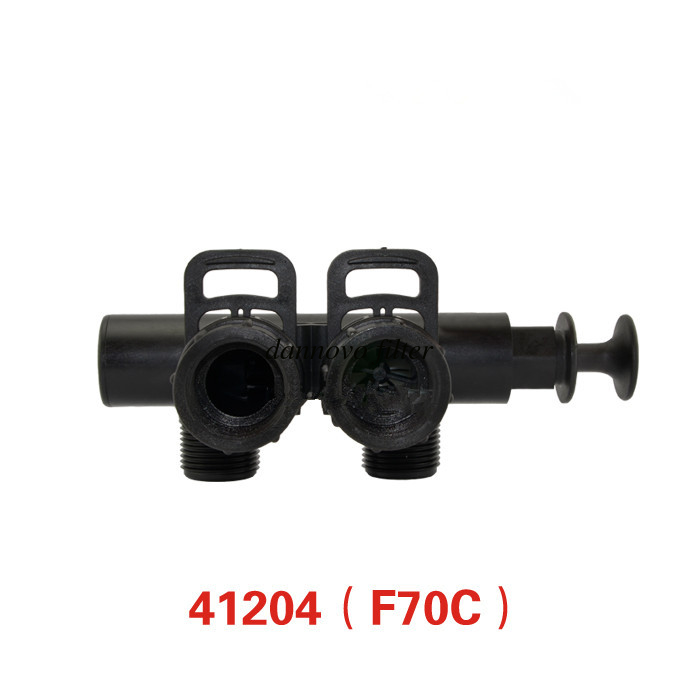

Bypass Valve F70C Shows:
