RUNXIN 10m3/h Multi-port Manual Filtering Flow Control Valve For Water Filter

RUNXIN 10m3/h Manual Multi-port Filtering Flow Control Valve For Water Filter

RUNXIN F56D Manual Filter Valve parameters:

water pressure------------------------------------0.15-0.6mpa

water temperature--------------------------------5°c-45°c

water turbidity--------------------------------------<20FTU

Inlet/Oulet-------------------------------------------2"F

Drain--------------------------------------------------1.5"F

Base---------------------------------------------------4"-8UN

Riser Pipe--------------------------------------------1.05"OD

Max flow rate----------------------------------------10m^3/h

Sutiable tank size---------------------------------- 10"-24"

RUNXIN F56D Manual Filter Valve Characteristics:

■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
■It can be changed to be side-mounted valve with side-mounted connector.
■It can operate under pressure, without leakage.


RUNXIN F56D Manual Filter Valve Range of Application:

Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system

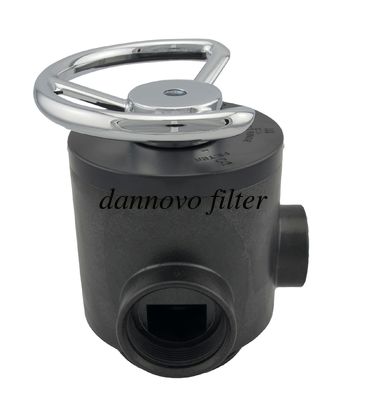

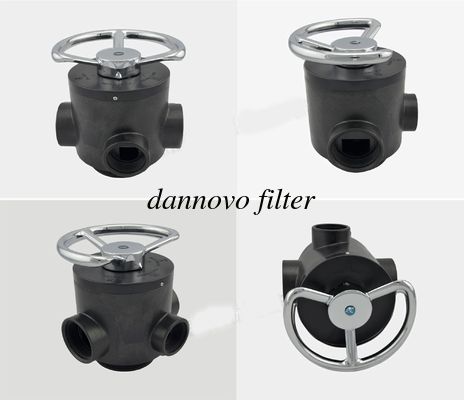

RUNXIN F56D Manual Filter Valve detail shows:

RUNXIN manual filter valve packing details:
