RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve

I'm Online Chat Now

RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve

China RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve supplier
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve supplier RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve supplier RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve supplier RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve supplier

Large Image :  RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve

Product Details:

Place of Origin: wenzhou
Brand Name: RUNXIN
Certification: CE,ROSH,NSF
Model Number: F71B

Payment & Shipping Terms:

Minimum Order Quantity: 6 sets
Price: negotiable
Packaging Details: 6sets/carton
Delivery Time: 15-30days
Payment Terms: west union,T/T,paypal
Supply Ability: 2000 sets/day
Contact Now
Detailed Product Description
Color: Black Model: F71B
Flow Rate: 2m3/h

China RUNXIN Automatic Filter Valves Softer Valve RUNXIN Automatic Valve

Runxin Automatic Filter Control Valve Parameters:

Water Pressure0.15—0.6MPa
Water Temperature5℃-50℃
Transformer OutputDC12V,1.5A
Water Turbidity<20FTU
Inlet/Outlet3/4″F
Drain3/4″F
Base2.5″-8NPSM
Riser Pipe1.05 ″OD
Max Flow Rate2 m3/h
Suitable Tank Size (in)6″~10″



Runxin F71B Characteristics:
●The distributing valve adopts hemetic head face construction. And themain valve body is assembled by four tee joint bucket valves. Distributing valve and main valve body are assembled together.
●Inlet and outlet are respectively equipped with pressure gauge and sampling valve.
●Fittings of UPVC material are adopted in inlet, outlet, drain, topstrainer base and bottom strainer base, which makes it easier to connect with UPVC pipes.
●Adopt side-mounted type.
●Equipped with booster pump, the distributing valve can still drive the pistons when the inlet pressure is under 0.2 Mpa.
●No separate grid inside, which makes assembling more convenient.
Working Principle and Range of Application:
● It adopts program to drive the motor to control valve core, based ontime signal, volume signal or outlet water quality to regenerate, adoptstime signal to automatically realize the exchange of functions like backwash, brine &slow rinse, brine refill and fast rinse, etc.
● It is main used in boiler softening water system, soften device of RO Pre-treatment and ion exchange equipment, etc.
Range of Application:
●RO Rre-treatment System
●Boiler Softening Water System
●Ion Exchange Equipment
●Swimming Pool Filter Equipment


●The distributing valve adopts hemetic head face construction. And themain valve body is assembled by four tee joint bucket valves. Distributing valve and main valve body are assembled together.
●Inlet and outlet are respectively equipped with pressure gauge and sampling valve.
●Fittings of UPVC material are adopted in inlet, outlet, drain, topstrainer base and bottom strainer base, which makes it easier to connect with UPVC pipes.
●Adopt side-mounted type.
●Equipped with booster pump, the distributing valve can still drive the pistons when the inlet pressure is under 0.2 Mpa.
●No separate grid inside, which makes assembling more convenient.
Working Principle and Range of Application:
● It adopts program to drive the motor to control valve core, based ontime signal, volume signal or outlet water quality to regenerate, adoptstime signal to automatically realize the exchange of functions like backwash, brine &slow rinse, brine refill and fast rinse, etc.
● It is main used in boiler softening water system, soften device of RO Pre-treatment and ion exchange equipment, etc.
Range of Application:
●RO Rre-treatment System
●Boiler Softening Water System
●Ion Exchange Equipment
●Swimming Pool Filter Equipment

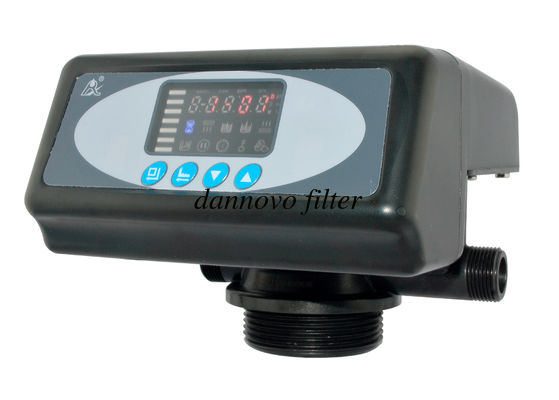

Runxin Automatic Filter Control Valve Shows:
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
Runxin Automatic Filter Control Valve characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need

Runxin Automatic Filter Control Valve Range of Applications:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system

Runxin Automatic Filter Control Valve packing:
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
RUNXIN Automatic Filter Control Valve F71B1 LCD Screen Multi-functional Filter Valve
