10 inch 5 micron PP melt blown filter Cartridge PP Sediment Water Filter Cartridge

I'm Online Chat Now

10 inch 5 micron PP melt blown filter Cartridge PP Sediment Water Filter Cartridge

China 10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge supplier
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge supplier 10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge supplier 10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge supplier 10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge supplier

Large Image :  10 inch 5 micron PP melt blown filter Cartridge PP Sediment Water Filter Cartridge

Product Details:

Place of Origin: Shandong
Brand Name: dannovo
Certification: quality report
Model Number: 40

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiable
Packaging Details: 25pcs/carton
Delivery Time: 15-30days
Payment Terms: west union,T/T,paypal
Supply Ability: 2000 pcs/day
Contact Now
Detailed Product Description
Length: 40 Inch Material: Polypylene
Color: White

10 inch 5 micron PP melt blown filter Cartridge PP Sediment Water Filter Cartridge

filter 10"PP 5 micron / PP Filter Cartridge for Filters and Filtration Systems

PP melt blown filter cartridge (PPF) is made from polypropylene material. It can remove

suspendedsubstances, particles and rust effectively. This cartridge usually works as the

prefiltration to protectthe behind filtration for water treatment system. Special cartridges

can be customized.



PP melt blown filter cartridge  parameters:



Name

40"5um pp melt blown filter cartridge in water filter

Length 40 inch =1016mm(1000mm)
Inner diameter 28mm(30mm)
Outer diameter 62mm
Weight 440g
Function pre-filter use in the filter hosings to remove sediment ,iron trust and hair.
Processing flow 1500/H
Replacement time 6 months
Maximum differential pressure 3 kg f/cm²

Maximum operating temperature



5-80°c






Model NO. PP40
Material 100% food grade polypropylene (PP)
Specification OD: 65MM/2.5" ID:28/30MM Length:10"
Micron Rate 0.5/1/5/10/25 Micron
Operating TEMP. 4-52℃
Max. Operating Pressure 60 psi
Max. Flow 2.5GPM(1.5-2kg/cm2)
Filtration Life 3~6 months/2500G Depends on water quality and level of contaminants
Carton Size(cm) 32X32X53





1. This pp melt blown filter caritridge is the embossing surface type ,which can remove impurity clearly because of its strong assimilative capality .It can remove sand sediment ,iron rust ,hair and other impurity in water .





2. Typical applications for the polypropylene filter (also



known as a PP filter) include under sink filtration,



whole house filtration, potable water, food service,



beverages, reverse osmosis prefiltration, fine chemicals,



light industrial uses (electronics, plating solutions,



etc), and more.



PP cartridge is avirulent insipidity of polypropylene particles, through heat melt, silk, traction, accept to the forming

tubular filter. The main material is polypropylene primarily. It is not only widely used in water treatment, water filter

and reverse osmosis system to remove bacteria, heavy metal, dust and other harmful substances. It also has the

outstanding chemical compatibility, that used in strong acid,strong alkali and organic solvents.Carrying ability, long

service life and low cost.



MELT BLOWN WATER FILTER CARTRIDGE



Using 100% food grade Polypropylene (PP) as material, the filter cartridge contains no wetting

agents, solvents, antistatic agents or binders.

By special production technology to control the diameter of PP fiber, the micron rate of filter cartridge

is controlled. Removing efficience can reach 98%.

The surface layer of the filter cartridge is designed to be low density to assure the high dirt-holding

capability, while the inner layer is higher density to keep the accurate filtration ability to small particles.

The density type is 30% higher filtration effect than the general type.



PP cartridge is avirulent insipidity of polypropylene particles, through heat melt, silk, traction, accept to the forming

tubular filter. The main material is polypropylene primarily. It is not only widely used in water treatment, water filter

and reverse osmosis system to remove bacteria, heavy metal, dust and other harmful substances. It also has the

outstanding chemical compatibility, that used in strong acid,strong alkali and organic solvents.Carrying ability, long

service life and low cost.

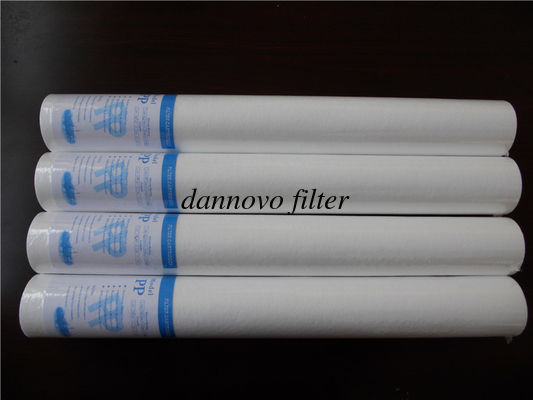

pp melt blwon filter cartridg shows:

10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge

10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge

10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
10 inch 5 micron PP melt blown filter Cartridge  PP Sediment Water Filter Cartridge
