5um PP Sediment Water Filter Cartridge PP Melt Blown Whilte Cotton Filter

5um PP Sediment Water Filter Cartridge PP Melt Blown Whilte Cotton Filter



20 Inch 5um PP Sediment Melt Blown filter cartridge for reverse osmosis system



Name	PP Melt Blown Sediment Filter Cartridge 20 Inch in Water Filter
Length	20 inch =508mm
Inner diameter	28mm
Outer diameter	62mm
Weight	220g
Function	pre-filter use in the filter hosings to remove sediment ,iron trust and hair
Processing flow	1000L/H
Replacement time	6 months
Maximum differential pressure	3 kg f/cm²
Maximum operating temperature	5-80°c



1. This pp melt blown filter caritridge is the embossing surface type ,which can remove impurity clearly because of its strong assimilative capality .It can remove sand sediment ,iron rust ,hair and other impurity in water .





2. Typical applications for the polypropylene filter (also



known as a PP filter) include under sink filtration,



whole house filtration, potable water, food service,



beverages, reverse osmosis prefiltration, fine chemicals,



light industrial uses (electronics, plating solutions,



etc), and more.



PP cartridge is avirulent insipidity of polypropylene particles, through heat melt, silk, traction, accept to the forming

tubular filter. The main material is polypropylene primarily. It is not only widely used in water treatment, water filter

and reverse osmosis system to remove bacteria, heavy metal, dust and other harmful substances. It also has the

outstanding chemical compatibility, that used in strong acid,strong alkali and organic solvents.Carrying ability, long

service life and low cost.





MELT BLOWN WATER FILTER CARTRIDGE



Using 100% food grade Polypropylene (PP) as material, the filter cartridge contains no wetting

agents, solvents, antistatic agents or binders.

By special production technology to control the diameter of PP fiber, the micron rate of filter cartridge

is controlled. Removing efficience can reach 98%.

The surface layer of the filter cartridge is designed to be low density to assure the high dirt-holding

capability, while the inner layer is higher density to keep the accurate filtration ability to small particles.

The density type is 30% higher filtration effect than the general type.



PP cartridge is avirulent insipidity of polypropylene particles, through heat melt, silk, traction, accept to the forming

tubular filter. The main material is polypropylene primarily. It is not only widely used in water treatment, water filter

and reverse osmosis system to remove bacteria, heavy metal, dust and other harmful substances. It also has the

outstanding chemical compatibility, that used in strong acid,strong alkali and organic solvents.Carrying ability, long

service life and low cost.

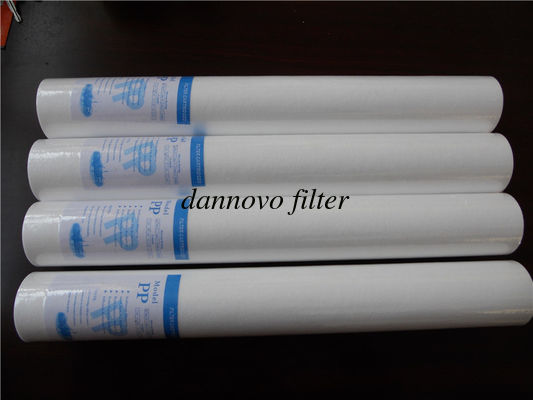

pp sediment filter cartridge shows:
