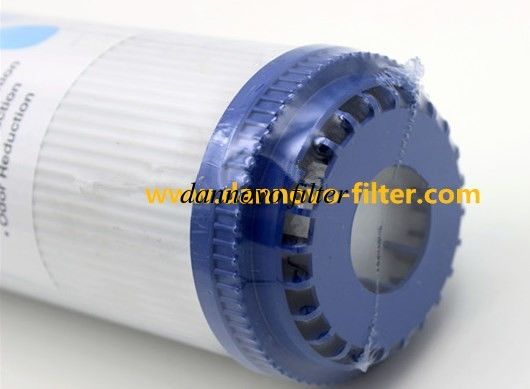

10“ CTO Coconut Shell Activated Carbon Block Water Filter Cartridge

I'm Online Chat Now

10“ CTO Coconut Shell Activated Carbon Block Water Filter Cartridge

China 10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge supplier
10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge supplier 10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge supplier 10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge supplier 10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge supplier

Large Image :  10“ CTO Coconut Shell Activated Carbon Block Water Filter Cartridge

Product Details:

Place of Origin: Shandong
Brand Name: dannovo
Certification: quality report
Model Number: 10

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: 20pcs/carton
Delivery Time: 15-30days
Payment Terms: west union,T/T,paypal
Supply Ability: 2000 pcs/day
Minimum Order Quantity: 1000pcs
Contact Now
Detailed Product Description
Outner Diameter: 64mm Pressure: 80PSI
Inner Diameter: 38mm

CTO/UDF/GAC activated carbon water filter cartridge for RO water purifier



activated carbon block filter introduction:





Material Membrane: Polyethylene
Core: Mineral AC & Coconut shell AC
O ring/Gasket: Silicone, EPDM, Buna-N
Specifications Pore size(um): 5,10 Micron
Outer Diameter(OD): 63mm,70mm,115mm(can be decided by client)
Length(inch): 5"10"20" 30"40"(can be decided by client)
Technical data Max differential pressure: 7 bar at 20°C
Recommended change out: 1-1.5bar
Max temperature: 52°C




Detailes Information:

1. Removing impurities:%

Chloride remaining Oxygen consume Hg Fe Oxide As Cyanid Phenol Chromium(6+)
96.3 44.3 79.6 92.5 67.5 38.8 99.9 79.4 49.3


2. Balance adsorption of poison gas per filter cartridge (10″) (g)

Methylbenzene Methyl alcohol Methyl alcohol Styren Ether Acetone Chloroform Hydrogen sulphide C N-butyl mercaptan
82 70 67 61 92 71 122 125 170




outner diameter:71mm

length:10inch=254mm

The activated carbon is made by the nutshell carbon as its main raw material,it can dramatically

remove from water and liquid the organic matter,remaining chlorine and other radioactive

substance,italso can remove unpleasant taste,Purified and decolorized.

• No channeling

• No fluidizing

• No bypassing

• Lowest extractable, pure materials of construction

• Maximum service life and resistance to fouling

• Graded density pre-filtration design

• Manufactured using FDA-compliant materials

1. Chlorine reduction

2. Bad taste reduction

3. Odor reduction

4. For Water Application





CTO water filter cartridge Description

Activated Carbon Filter Cartridge is extruded and shaped by activated carbon fines. The material can be mineral type or coco-nut. The function of this cartridge is the removal of chlorine, bad taste and organic. Ensuring no carbon fines release and strong adsorptivity.



Activated carbon block filter Applications

• Plating

• Drinking water

• Paints, coatings and plating solutions



Carbon block filter cartridge Specification



• Material of Construction

• Filter Media: Mineral or coco-nut

• End cap : Polypropylene

• Netting: Polyethylene

• Micron Rating:5µm, 10µm



CTO water filter Dimensions

• Inside diameter: 28mm

• Outside diameter: 68mm or 115mm

• Length: 5", 10", 20", 30", 40"



CTO activated carbon filter cartridge Product Description:
Compression type activated carbon filter with high adsorption value of the activated carbon from coal and coconut shell activated carbon as filter material, binder sintering to food grade compression molding. Compressed activated carbon filter and are wrapped with a layer of non-woven filtering function, to ensure that the carbon core itself will not fall into the charcoal powder, carbon core are provided with soft NBR rubber gasket, the carbon core into the cartridge has good sealing.
CTO activated carbon filter cartridge characteristics of the product:
The use of high technology, and a shell carbon quality raw materials; carbon core with edible binder as accessories, made by special molding process of the backlog, activated carbon filters domestic advanced quality, it sets the adsorption, filtration, can effectively organic matter, in addition to the residual chlorine and other radioactive substances and decolorization, deodorization effect. Special effects not only water treatment in the petroleum, chemical, electronic, pharmaceutical, food industry has been applied, and in the air purification has been widely used.

activated carbon block filter shows:



10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge

10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge





10“ CTO Coconut Shell Activated Carbon Block Water  Filter Cartridge
