|Inner Diameter:||28mm||Outner Diameter:||62mm|
Melt Blown PP Sediment Filter Cartridge PP Melt Blown Filter Cartridge introduction:
PP melt blown filter cartridge (PPF) is made from polypropylene material. It can remove
suspendedsubstances, particles and rust effectively. This cartridge usually works as the
prefiltration to protectthe behind filtration for water treatment system. Special cartridges
can be customized.
PP Filter Element
1. Brief Introduction:
PP filter element adopts polypropylene particles and is formed through heating, melting and spinning. PP filter element has even aperture and a deep filtration structure which is loose outside and dense inside, and has high filtration efficiency and good acid and alkali-resistance property, and impurities such as suspension substances, particles, iron scale and the like in liquid can be effectively removed.
The filtration precision is high, the pressure loss is small, the flow is big, the dirt holding capacity is big, the service life is long, and the product is tasteless and odorless and does not have secondary pollution.
The product can be widely used in filtering liquid in the industries such as pure water, electroplating solution, printed circuit board, solvent, dope, washing agent, medical water, oral solution, pharmaceutical injection solution, drinks, wine and the like, and can be used in filtering compressed air and gas.
4. Specification: (special specifications can be ordered)
|Outer Diameter (+-1mm)||60-115 mm|
|Inner Diameter (+-1mm)||28-30 mm|
a. Precision and Flow
|Filtration Precision (mum)||1||3||5||10||20||30||50|
Notes: The detected filter element length is 10”, the pressure difference is 0.02MPa, the testing medium is clear water, and other filter elements are by parity of reasoning.
b. Highest Pressure Resistance: <=0.5MPa; Maximum Pressure Drop: 0.2MPa
c. Highest Working Temperature: <=60DEG C
Melt Blown PP Sediment Filter Cartridge PP Melt Blown Filter Cartridge parameters:
Melt Blown PP Sediment Filter Cartridge PP Melt Blown
|Length||20 inch =508mm|
|Function||pre-filter use in the filter hosings to remove sediment ,iron trust and hair.|
|Replacement time||6 months|
|Maximum differential pressure||3 kg f/cm²|
|Maximum operating temperature||5-80°c|

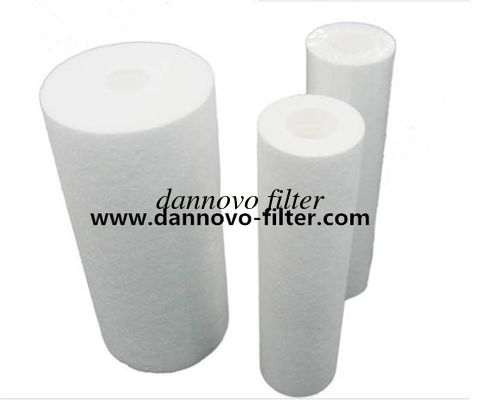

Melt Blown PP Sediment Filter Cartridge PP Melt Blown Filter Cartridge shows:
