|Item:||Tatinium Microporous Plate Filter Cartridge||Material:||Titanium|
|Filter Rating:||99%||Length:||10inch 20inch 30inch 40inch|
Titanium Filter Cartridge Powder Sintered Filter For Filtration Of Developing Solution
Titanium Microporous Plate filter cartridge specifications:
Micropore titanium cartridge was made of high purify titanium powder,which sintered in high temperature. It is used for depth filtration, for the uniform aperture,controlled pore size,high porosity,amount of open pore, which is easy to control. And also the lower obstruction,good osmosis,high temperature resistance,long service life and corrosion resistance can be used in various medium filtration.
M20,M30,226,222 or user specified.
1.withstand heat,high pressure
2.constructed from sintered titanium power.
3.high corrosion resistance
Titanium Microporous Plate filter cartridge Dimensions/Parameters:
10 inch ,20 inch, 30 inchi
(25.4, 50.8, 76.2 cm)
Double open End
226/Flat Single Open End
222/Flat Single Open End
3/4 inch Male NPT
1 inch Male NPT
2.75 inch(70mm) or 2.36 inch (60mm)
Max. operating temp:700 F(371 C)
Max. differential pressure:
250 psid(17.4 bar) forward
50 psid(3.5 bar) reverse
1. Large flow
2. Long service life
3. Filtration efficient:95~99.9%.
4. Good mechanical performance, light and firm.
5. Max. Temperature is 300℃.
6. Lower working differential pressure: initial rate osmotic pressure is 0.03Mpa.
7. Good reusable ability: purify water backwash,compressed air blowback,ultrasonic cleaning, acid-base cleaning.
8. Fit for most mediums and good corrosion resistance, such as organic acid,inorganic acid,organic compounds,alkaline lye.
|Applicable industries||Fine chemicals, water treatment systems, pulp and|
paper, auto industry, petro-chemical, machining, coatings, electronics, etc.
|Applicable liquids||Wide applicability, all liquids contained micro particles|
|Filtration function||Remove particles in various sizes, purify liquids, protect|
|Filtration type||microfiltration, filter with disposable filter media, which|
requires periodic manual replacement

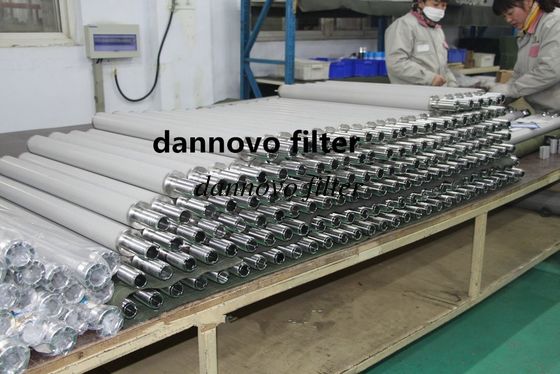

Titanium Microporous Plate filter cartridge shows:
