Inlet/outlet: | DN80 | Flow Rate: | 50 M3/h |
---|---|---|---|
Color: | Black | Drain: | DN80 |

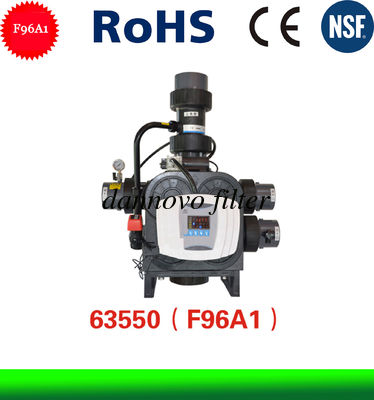

Runxin Automatic Softner Control Valve F96A1 Big Flow Water Softener Valve
Runxin F96A1 Technical Parameters:
Water Pressure | 0.2—0.6MPa |
Water Temperature | 5℃-50℃ |
Transformer Output | DC24V,4A |
Water Turbidity | <2FTU |
Inlet/Outlet | DN80 |
Drain | DN80 |
Brine Line Connector | 3/4″M |
Top and Bottom Strainer | DN100 |
Max Flow Rate | 50 m3/h |
Suitable Tank Size (in) | 24″~63″ |
Runxin F96A1 Characteristics:
●The distributing valve adopts hemetic head face construction. And themain valve body is assembled by four tee joint bucket valves. Distributing valve and main valve body are assembled together.
●Inlet and outlet are respectively equipped with pressure gauge and sampling valve.
●Fittings of UPVC material are adopted in inlet, outlet, drain, topstrainer base and bottom strainer base, which makes it easier to connect with UPVC pipes.
●Adopt side-mounted type.
●Equipped with booster pump, the distributing valve can still drive the pistons when the inlet pressure is under 0.2 Mpa.
●No separate grid inside, which makes assembling more convenient.
Working Principle and Range of Application:
● It adopts program to drive the motor to control valve core, based ontime signal, volume signal or outlet water quality to regenerate, adoptstime signal to automatically realize the exchange of functions like backwash, brine &slow rinse, brine refill and fast rinse, etc.
● It is main used in boiler softening water system, soften device of RO Pre-treatment and ion exchange equipment, etc.
Range of Application:
●RO Rre-treatment System
●Boiler Softening Water System
●Ion Exchange Equipment
●Swimming Pool Filter Equipment
