Product Details:
Payment & Shipping Terms:
|
| Flow Rate: | 20 M3/h | Color: | Black |
|---|---|---|---|
| Inlet/outlet: | 2"M | Drain: | 2"M |
RO&UF System Automatic Filter Control Valve And Semi-automatic Valve F111B
Runxin 20m3/h Automatic Filter Control Valve For Water Treatment
F111B Valve Runxin Technical Parameters:
| Water Pressure | 0.2—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Transformer Output | DC24V,1.5A |
| Water Turbidity | ＜2FTU |
| Inlet/Outlet | 2"M |
| Drain | 2"M |
| Riser Pipe | 2"D-GB |
| Max Flow Rate | 20 m3/h |
| Suitable Tank Size (in) | 28″～40″ |

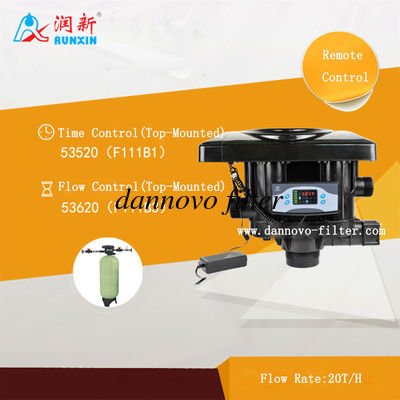

F111B Valve Runxin Shows:
F111B Valve Runxin Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■The main valve uses the structure of four tee pistons. The distribution valve is combined with main valve.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■Buttons are locked when no operation within 1 minute
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Range of Application:
Filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
F111B Valve Runxin Fitting and Packing:
