Product Details:
Payment & Shipping Terms:
|
| Type: | Manual Water Softner Valve | Inlet/outlet: | DN65 |
|---|---|---|---|
| Drain: | DN65 | Max Flow Rate: | 30m3/h |

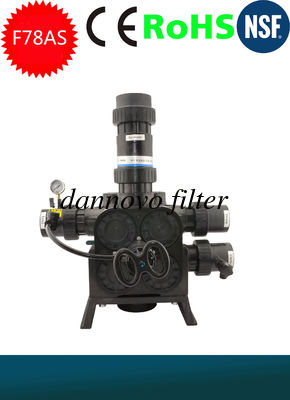

Manual Water Softner Control Valve for Water Softner System Runxin Multi-port Valve F78AS
manual water softner valve parameters:
| Water Pressure | 0.2—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Water Turbidity | ＜10FTU |
| Inlet/Outlet | DN65 |
| Drain | DN65 |
| Top and Bottom Strainer | DN80 |
| Max Flow Rate | 30 m3/h |
| Suitable Tank Size (in) | 24″～42″ |
manual water softner valve characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■The main valve uses the structure of four tee pistons. The distribution valve is combined with main valve.
■No water passes the valve in rinse in single tank type.
■The valve installs in side of tank, easy to operate.
manual water softner valve Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system

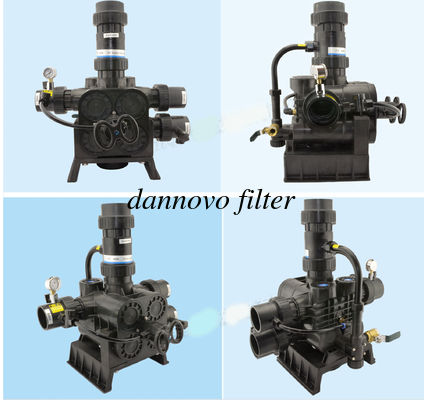

Manual water softner valve detail shows:
