Product Details:
Payment & Shipping Terms:
|
Type: | Automatic Runxin Valve Used For Water Filter | Model: | F71P |
---|---|---|---|
Color: | Black | Inlet/outlet: | 3/4"F |
Drain: | 3/4"F |
Runxin F71P 2T/H Automatic Water Filter Control Valve For Water Treatment
Runxin F71P Technical Parameters:
Water Pressure | 0.15—0.6MPa |
Water Temperature | 5℃-50℃ |
Transformer Output | DC12V,1.5A |
Water Turbidity | <20FTU |
Inlet/Outlet | 3/4″F |
Drain | 3/4″F |
Base | 2.5″-8NPSM |
Riser Pipe | 1.05 ″OD |
Max Flow Rate | 2 m3/h |
Suitable Tank Size (in) | 6″~10″ |
Runxin F71P Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Runxin F71P Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system

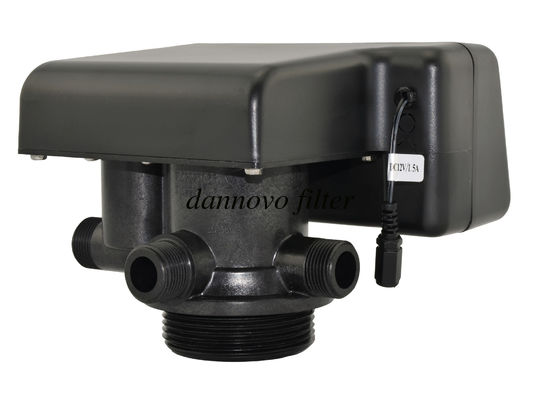

Runxin F71P Shows:
Runxin F71P Packing Shows:
